Product Description:

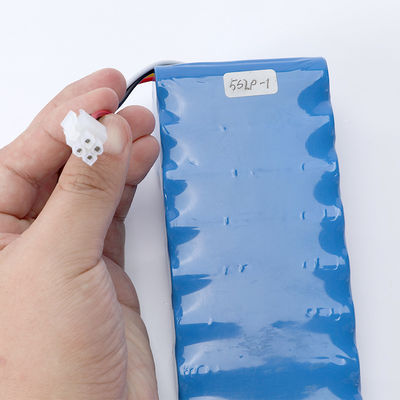

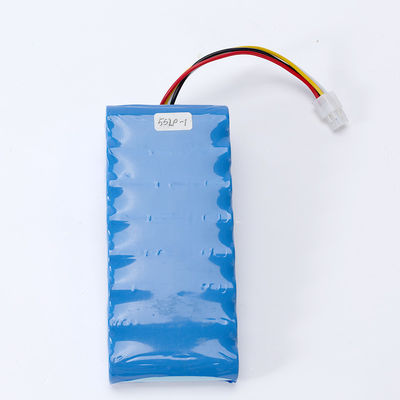

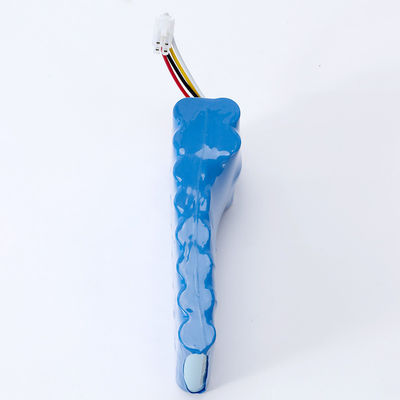

High Capacity 18650 Lithium Ion Cell 14.4V 6800mAh 5S2P Battery Pack for E Scooter
Our electric scooter batteries offer durability with shockproof and efficient heat dissipation. They utilize nickel sheet welding for reduced resistance and balanced discharge. The advanced Battery Management System (BMS) ensures consistent and stable current output.
Key Highlights:
High energy density: Our 18650 battery pack extends your e-scooter's range.
Customizable: Tailor the pack to your e-scooter with flexible cell options.
Excellent performance: Reliable voltage and high discharge rates for optimal efficiency.
Enhanced safety: Includes built-in protection, thermal management, and safeguards against overcharge and over-discharge.
Longevity: Maintains 80%+ capacity even after 1000 cycles.
18650 Pack Parameters:
| 24V/36V/48V/60V/72V 18650 Pack Reference |
| Model |
Assembly |
Capacity |
Dimension |
Weight |
| 24V8Ah |
7S4P |
2000mah |
145*75* 70mm |
1.6Kg |
| 24V10Ah |
7S4P |
2500mah |
145*75* 70mm |
1.6Kg |
| 24V12Ah |
7S6P |
2000mah |
145*111*70mm |
2.3Kg |
| 24V15Ah |
7S6P |
2500mah |
145*111* 70mm |
2.3Kg |
| 36V8Ah |
10S4P |
2000mah |
165*93* 70mm |
2.2Kg |
| 36V10Ah |
10S4P |
2500mah |
165*93* 70mm |
2.2Kg |
| 36V12Ah |
10S6P |
2000mah |
200*111* 70mm |
3.2Kg |
| 36V15Ah |
10S6P |
2500mah |
200*111* 70mm |
3.2Kg |
| 36V18Ah |
10S9P |
2000mah |
295*111*70mm |
4.7Kg |
| 36V20Ah |
10S8P |
2500mah |
315*93* 70mm |
4.2Kg |
| 48V8Ah |
13S4P |
2000mah |
255* 75* 70mm |
2.8Kg |
| 48V10Ah |
13S4P |
2500mah |
255*75* 70mm |
2.8Kg |
| 48V12Ah |
13S6P |
2000mah |
255*111*70mm |
4.1Kg |
| 48V15Ah |
13S6P |
2500mah |
255*111* 70mm |
4.1Kg |
| 48V18Ah |
13S9P |
2000mah |
255*166* 70mm |
6.0Kg |
| 48V20Ah |
13S8P |
2500mah |
255*148* 70mm |
5.4Kg |
| 48V26Ah |
13S10P |
2600mah |
255*185*70mm |
6.7Kg |
| 60V10Ah |
16S4P |
2500mah |
311*75*70mm |
3.6Kg |
| 60V15Ah |
16S6P |
2500mah |
311*111*70mm |
5.1Kg |
| 60V20Ah |
16S8P |
2500mah |
311*148*70mm |
6.6Kg |
| 72V20Ah |
20S8P |
2500mah |
385*148* 70mm |
8.2Kg |
18650 Pack Applications:
Design custom 18650 lithium-ion battery packs for e-bike replacements, catering to 24V, 36V, 48V, 60V, and 72V setups, ensuring a precise fit for your electric bike.
18650 Pack Customization:
Offering versatile custom 18650 battery packs in a range of voltages, including 12V, 24V, 36V, 48V, and 72V, for a wide array of applications.
Our electric bike batteries excel with a robust shockproof and heat-dissipating support system, ensuring durability and safety. Precision nickel sheet welding minimizes internal resistance and promotes balanced discharge for improved performance and longevity. Our high-quality Battery Management System (BMS) maintains consistent output while safeguarding against overcharging, undercharging, short circuits, and other potential risks. Key features include:
1. Sturdy shockproof and heat-dissipating support design.
2. Precision nickel sheet welding for low internal resistance and balanced discharge.
3. High-performance BMS for reliable power output.
4. Extended battery lifespan.
5. Guaranteed safety.
Support and Services:
Our 18650 Pack Technical Support and Services:
24/7 Expert Consultation: Get expert guidance and collaboration whenever you need it for your project.
Tailored Solutions: We customize our services to match your specific requirements, from battery pack design to unique solutions.
Adaptable Production: Our factory handles orders of all sizes, accommodating your project's changing needs.
Top-notch Quality Assurance: We subject our batteries to rigorous testing and certification (CE and UL) to meet or exceed industry standards.
Secure Shipping: We use UN38.3 certified packaging to ensure safe transportation of battery packs.
Comprehensive Support: Our team provides continuous technical assistance, including inquiries, troubleshooting, and maintenance, throughout your project's lifecycle.
Packing and Shipping:
Packaging and Shipping of 18650 Pack
FAQ:
Q: What type of battery is used in this electric bike?
A: The electric bike uses a Li-ion battery with Li(NiCoMn)O2 composition.
Q: How does a Li-ion battery differ from Ni-MH and lead acid batteries?
A: Li-ion batteries have advantages like longer cycle life (800-1000 cycles), lightweight design, no memory effect, and environmental friendliness.
Q: What's the recommended battery temperature range?
A: Charge between 0-45°C, discharge between -20-65°C.
Q: What type of cells are used in your e-bike batteries?
A: We utilize high-quality domestic cells, and the cell type can be tailored to your specifications.
Q: Is a charger included with your e-bike batteries?
A: Absolutely, all our e-bike batteries come with a charger, offering both standard and fast charging options.
Q: Are your e-bike batteries equipped with a Battery Management System (BMS)?
A: Yes, our batteries feature a robust SEIKO IC BMS, ensuring protection against short circuits, overcharging, over-discharging, and overcurrent incidents.
Q: Do you provide OEM and ODM services?
A: Yes, as reputable e-bike battery manufacturers, we offer comprehensive OEM and ODM services, delivering customized, high-quality lithium batteries tailored to your needs.
Contact us today to learn more about our electric bike batteries and OEM and ODM services.
