Product Details:
|
| Battery Type: | LiFePO4 | Model Number: | 48-300 |
|---|---|---|---|
| Brand Name: | Enerforce | Size: | Customized |
| Certificate: | CE/ROHS/MSDS/UN38.3 | Battery Type: | 48V 300Ah Lifepo4 Batteries |
| Warranty: | 3 Years | Storage Temperature: | -20℃~60℃ |
| OEM/ODM: | Welcomed | Cycle Life: | 6000 Cycle @ 100% DOD, 80% Capacity Remain |
| Application1: | Electric Power Systems | Application2: | Solar Energy Storage Systems |
| Application3: | Uninterruptible Power Supplies | ||
| Highlight: | 48V LiFePO4 Battery 15kwh,OEM 48V LiFePO4 Battery,48V 300ah Lithium Ion Battery |
||

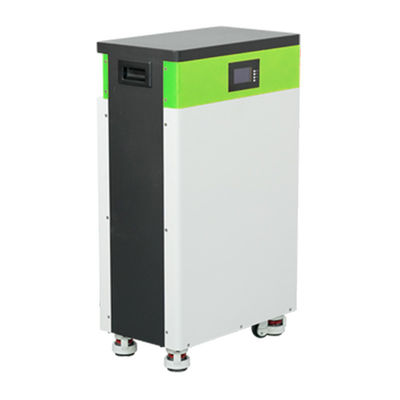

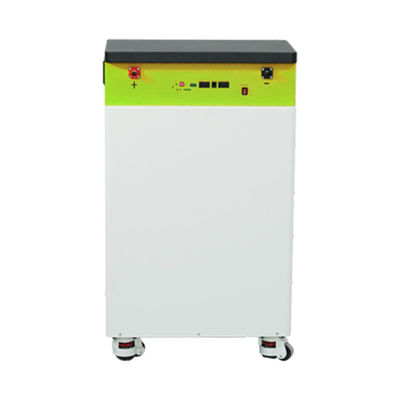

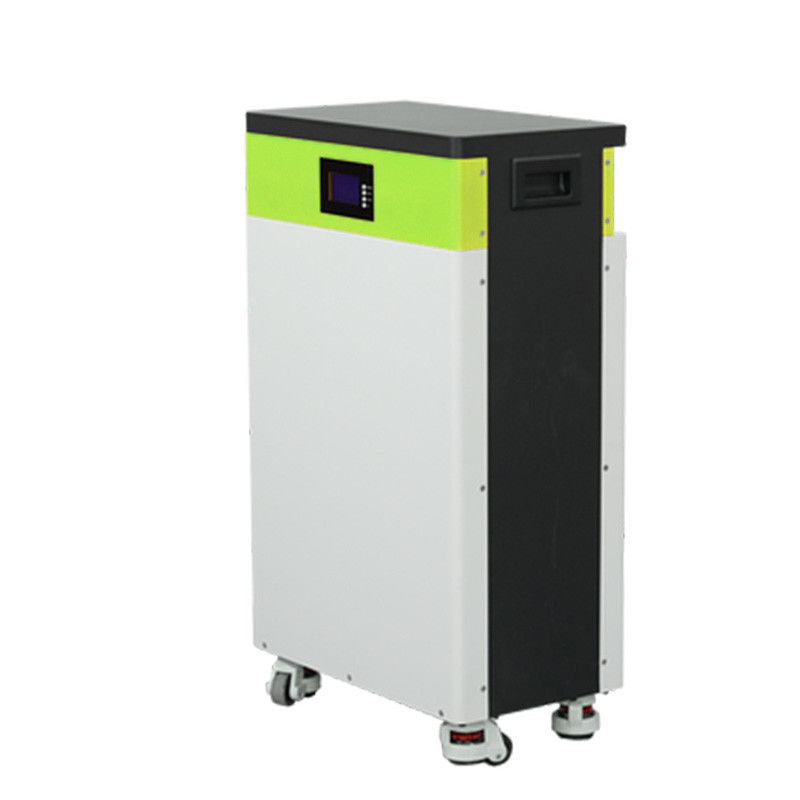

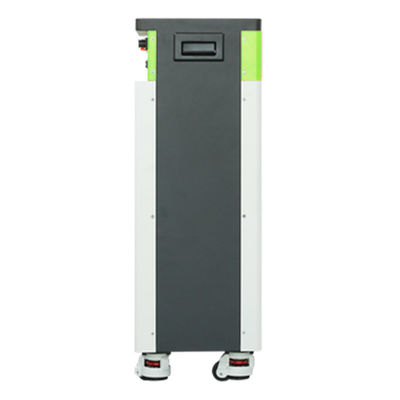

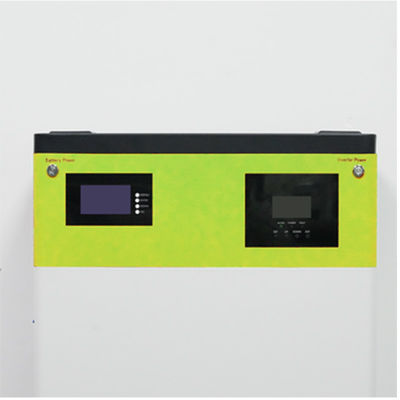

48V 300Ah 15Kwh 15kwh 48v 300ah battery pack lifepo4 lithium ion batteries Lithium ion Battery Wall Lithium Battery Energy Storage
Our solar system-powered storage wall lithium battery energy storage system is a large-capacity battery solution designed for storing and utilizing solar energy. Here are some key points about this type of energy storage system:
|
Model
|
5kwh(100Ah)
|
7.5kWh(150Ah)
|
10kWh( 200Ah)
|
15kWh( 300Ah)
|
|
Nominal Voltage
|
48V(15S)/51.2V(16S)
|
|||
|
Energy(Unit: wh)
|
4800 / 5120
|
7200/ 7680
|
9600 / 10210
|
14400 / 15360
|
|
Cycle
|
6000
|
6000
|
6000
|
6000
|
|
Internal Resistance
|
100≤mΩ
|
100≤mΩ
|
100≤mΩ
|
100≤mΩ
|
|
Bulit in Inverter
|
No
|
|||
|
Modes
|
Wall-mounted
|
Wall-mounted
|
Wall-mounted/
Mobile ESS |
Mobile ESS
|
|
Battery Working
|
40.5~42.0V
|
40.5~42.0V
|
40.5~42.0V
|
40.5~42.0V
|
|
Charging Mode(CC/CV)
|
At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then change continuously with constant voltage of 57.6V until the current was not more than 0.02C.
|
|||
|
Charging Current
|
20A
|
20A
|
20A
|
20A
|
|
Max.Charging Current
|
100A
|
100A
|
100A
|
100A
|
|
Discharging Current
|
20A
|
20A
|
20A
|
20A
|
|
Max. Continuous Current
|
100A
|
100A
|
100A
|
100A
|
|
Max.Pulse Current
|
150A(<30S)
|
150A(<30S)
|
150A(<30S)
|
150A(<30S)
|
|
Water Dust Resistance
|
IP22
|
|||
|
Cell & Format
|
IFR N100,15S1P(48V) / IFR N100,16S1P(51.2V)
|
|||
|
Dimension(L*W*H)
|
64.2*40*18.5cm
|
81*52*30cm
|
100.5*52*30cm
|
100.5*52*30cm
|
|
Weight
|
48.4kg
|
90.8Kg
|
97Kg
|
140kg
|
Highly trained professionals
Provides technical support and services for Rack Mount Lithium Battery
Specializes in Lithium Battery products
Assistance with all components
Assistance with battery cells, connectors, cables, and racks
Technicians have experience in all aspects of the product
Can help with any technical issues
Range of services
Dedicated to providing the best customer service and technical support possible
Contact information
If you have any questions or would like to schedule a service appointment, please contact us
Packing and Shipping:
* Double testing before packaging
