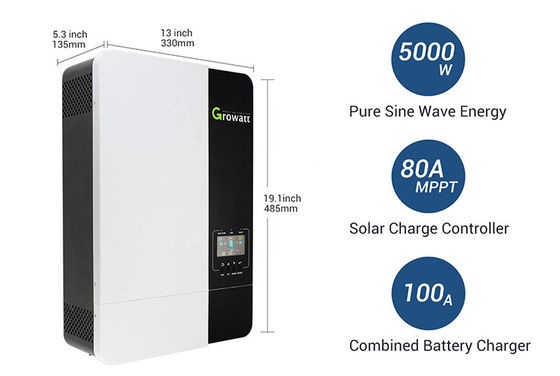

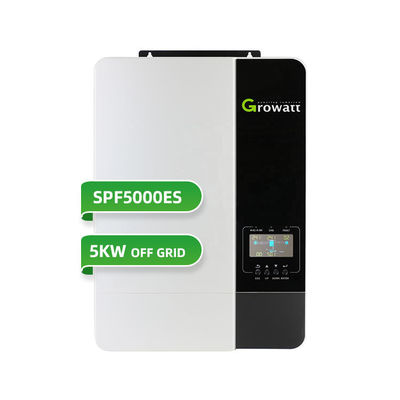

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

All Products

LiFePO4 Prismatic Cell

(18)

LiFePO4 Battery Pack

(29)

48V LiFePO4 Battery

(9)

Golf Cart Battery

(15)

Electric Bicycle Batteries

(10)

18650 Battery Pack

(27)

Residential Energy Storage System

(28)

Solar Portable Power Station

(6)

Portable Mobile Power Bank

(10)

DJI Drone Battery

(10)

Vacuum Cleaner Battery

(11)

Lithium Polymer Battery

(23)

Lithium Battery Cells

(10)

Lithium Battery Accessories

(10)
Customer Reviews
Cells were new,perfectly flat(not bulged) and pulled above full capacity as they s hould.Very satisfied!

—— W**********y

Batteries arrived well packaged and with no damage.This meant the whole process was very easy. I highly recommend this company for their service & products.

—— P***I

I haven't yet tested each battery but they all appear to be flawless and l did test 2 batteries which were perfectly matched.

—— Eric S*****g

I'm Online Chat Now

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Large Image :  Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Product Details:
Place of Origin: Shenzhen,Guangdong,China
Brand Name: Enerforce
Certification: CE, TUV, RoHS,UN38.3
Model Number: EF-SPF3500-5000ES
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: DG BOX
Delivery Time: 15-30 workdays
Payment Terms: TT
Supply Ability: 1,000 unit/day
Contact Now

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Description
Keyword: Grid Solar Panel Inverter Dimension: 330*485*135mm
Input Voltage: 230 VAC Output Voltage: 230VAC ± 5% @ 50/60Hz
Output Current: 80A/100A Output Frequency: 50Hz/60Hz
Product Name: Growatt SPF3500ES-SPF5000ES Off Grid Inverter Application: Solar Power System Home
Power Range: 3kW-100kW Product Name: Growatt Solar Inverter
Battery Voltage: 48 VDC Maximum Solar Charge Current: 80A/100A
Controller Type: MPPT Solar Controller 3KW Warranty: 5 Years
Weight: 12kg
Highlight:

48V Growatt Solar Inverter

,

5kVA Growatt Solar Inverter

,

5kW Growatt Solar Inverter

Product Description:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 0
Growatt SPF3500~5000ES is 230VAC output voltage off-grid inverter for backup power and self-consumption application, maximum PV input voltage up to 450VDC. also it can work without battery to saving system investment cost.



Features of Growatt SPF3500~5000ES Off Grid Inverter


1. Integrated MPPT charge controller.
2. Equalization charging function.
3. Work with battery or without battery.
4. Maximum PV input voltage up to 450VDC.
5. Configurable grid or solar input priority.
6. Optional WIFI/ GPRS remote monitoring.
7. Support parallel operation for capacity expansion up to 30kW.
8. PV and Grid power the load jointly if PV energy unsufficient.
9. Flexibly schedule the Inverter charging and discharging time.

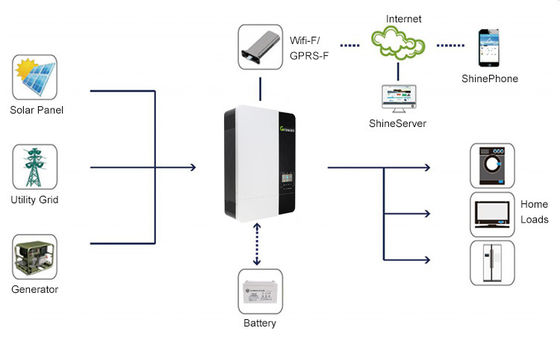

System Connection:



Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 1

Specification:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 2

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 3

Datasheet
SPF3500ES
SPF5000ES
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
INVERTER OUTPUT

Rated Power
3500VA/ 3500W
5000VA/ 5000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
7000VA
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical, 20ms Max
SOLAR CHARGER

Maximum PV Array Power
4500W
6000W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker
1/1
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Solar Charge Current
80A
100A
AC CHARGER

Charge Current
60A
80A
AC Input Voltage
230VDC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL

Protection Degree
IP20
Dimension (W/H/D)
330/485/135mm
330/485/135mm
Net Weight
11.5kgs
12kgs
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
＜2000m
Operating Temperature
0℃~55℃
Storage Temperature
-15℃~60℃

Wiring Diagram

Parallel Operation in Single Phase:

Two Growatt SPF Off Grid Solar Power Inverter in parallel: Power Connection
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 4Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 5Explore various inverter connection examples in the user manual, including parallel connection of six solar power inverters, three inverters in a single phase, and a single inverter for the remaining two phases. For more information, please feel free to contact our sales and engineering team.


Packing and Shipping:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems 6



  •

FAQ:


Q: How to install and use the solar inverter?
A: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.

Q: What if I don't have import experience ?
A: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.

Q: How is your technical support?
A: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

Q: Can you get the the solar inverter customized for us ?
A: Of course, brand name, machine color, designed unique patterns available for customization.

Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.

Q: What can you provide?
A: Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
