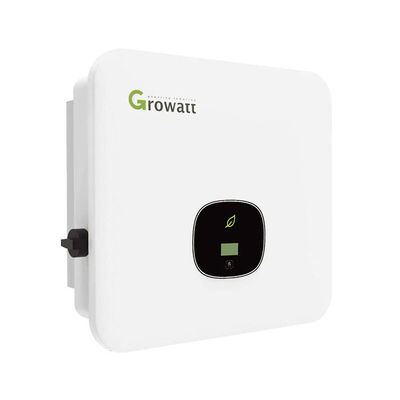

Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home

Large Image : Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home

Product Details:

Place of Origin:	Shenzhen,Guangdong,China
Brand Name:	Enerforce
Certification:	CE, TUV, RoHS,UN38.3
Model Number:	EF-MOD10000TL3-X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	DG BOX
Delivery Time:	15-30 workdays
Payment Terms:	TT
Supply Ability:	1,000 unit/day

Contact Now

Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home

Description

Keyword:	On Grid Solar Inverter	Dimension:	425387178 Mm
Input Voltage:	160-1100v	Output Voltage:	220V/380V, 230V/400V (340-440V)
Output Current:	16.7A	Output Frequency:	50/60HZ
Product Name:	Growatt On Grid Solar Inverter DC AC 10kw 15kw 20kw 30kw	Application:	Solar Power System Home
Max Pv Power:	15000w	MPPT Voltage Range:	140V-1000V
Nominal Volatage:	580V	Protection Degree:	IP66
Warranty:	10 Years	Weight:	14kg
Highlight:	Growatt On-Grid Solar Inverter , 15kW Growatt Solar Inverter , 10kW Growatt Solar Inverter

Product Description:

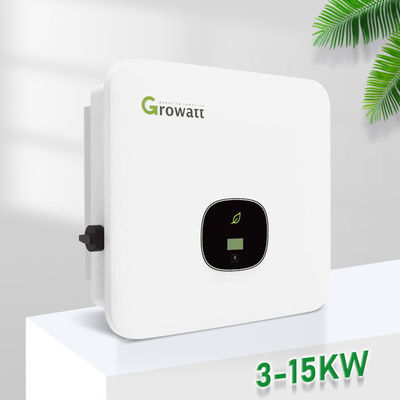

Growatt MOD 10000TL3-X On-Grid Inverter for 8kW 10kW and 15kW Three Phase Grid Tied Systems

The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.

The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.

System Connection:

Specification:

Datasheet	MOD 3000TL3-X	MOD 5000TL3-X	MOD 7000TL3-X	MOD 9000TL3-X	MOD 10000TL3-X	MOD 13000TL3-X	MOD 15000TL3-X
Input data (DC)
Max. recommended PV power (for module STC)	4500W	7500W	10500W	13500W	15000W	19500W	22500W
Max. DC voltage	1100V
Start voltage	160V				200V
Nominal voltage	580V
MPPT voltage range	140V-1000V
Output data (AC)
AC nominal power	3000W	5000W	7000W	9000W	10000W	13000W	15000W
Max. AC apparent power	3300W	5500W	7700W	9900W	11000W	14300W	16500W
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	5.0A	8.3A	11.7A	15.0A	16.7A	21.7A	25.0A
Adjustable power factor	0.8leading…0.8lagging
Efficiency
MAX. efficiency	98.3%	98.3%	98.6%	98.6%	98.6%	98.6%	98.6%
European efficiency	97.5%	97.5%	98.1%	98.1%	98.1%	98.2%	98.2%
MPPT efficiency	99.9%
General data
Dimensions (W / H / D)	425/387/147mm	425/387/147mm	425/387/178mm	425/387/178mm	425/387/178mm	425/387/178mm	425/387/178mm
Weight	12.5kg	12.5kg	14kg	14kg	14kg	16kg	16kg
Operating temperature range	–25°C ... +60°C
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
Display	OLED+LED/WIFI+APP

Product Description

Features of Growatt MOD3000TL3-X~15000TL3-X

* 3 phase power
* 3-15KW solar inverter
* Max efficiency: 98.6%
* DC/AC ratio up to 1.5
* Type II SPD on DC and AC side
* AFCI function optional
* Touch key and OLED display
* Free online service
* IP66 protection rating

Size and weight
Model	Height (H)	Width (W)	Depth (D)	Weight
MOD 3-6KTL3-X	387mm	425mm	147mm	12.5kg
MOD 7-11KTL3-X	387mm	425mm	178mm	14kg
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU	387mm	425mm	178mm	16.0kg

Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home 3

The appearance instructions are as follows:
No.	Name	No.	Name
A	DC switch	E	AC terminal
B	PV terminal	F	LED indicator
C	RS485 port	G	LCD screen
D	USB port	H	Touch button

Product Details

Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home 4

Product Packaging

Project Case

Growatt MOD 10000TL3-X On-Grid Solar Inverter 8kW 10kW and 15kW Three Phase for Solar Power System Home 6
