Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase

Name: Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase
Brand: Shenzhen Enerforce Technology Co., Ltd.
SKU: EF-SPH10000TL3-BH
Price: Negotiable USD
Availability: InStock

All Products

LiFePO4 Prismatic Cell
(18)

LiFePO4 Battery Pack
(29)

48V LiFePO4 Battery
(9)

Golf Cart Battery
(15)

Electric Bicycle Batteries
(10)

18650 Battery Pack
(27)

Residential Energy Storage System
(28)

Solar Portable Power Station
(6)

Portable Mobile Power Bank
(10)

DJI Drone Battery
(10)

Vacuum Cleaner Battery
(11)

Lithium Polymer Battery
(23)

Lithium Battery Cells
(10)

Lithium Battery Accessories
(10)

Customer Reviews

Cells were new,perfectly flat(not bulged) and pulled above full capacity as they s hould.Very satisfied!

—— W**********y

Batteries arrived well packaged and with no damage.This meant the whole process was very easy. I highly recommend this company for their service & products.

—— P***I

I haven't yet tested each battery but they all appear to be flawless and l did test 2 batteries which were perfectly matched.

—— Eric S*****g

I'm Online Chat Now

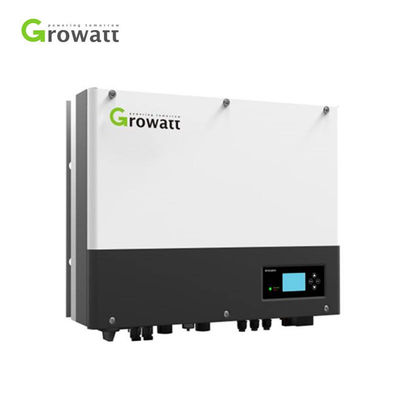

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase

Large Image : Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase

Product Details:

Place of Origin:	Shenzhen,Guangdong,China
Brand Name:	Enerforce
Certification:	CE, TUV, RoHS,UN38.3
Model Number:	EF-SPH10000TL3-BH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	DG BOX
Delivery Time:	15-30 workdays
Payment Terms:	TT
Supply Ability:	1,000 unit/day

Contact Now

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase

Description

Keyword:	Growatt SPH 10000TL3 BH Hybrid Inverter	Dimension:	505453198mm
Input Voltage:	160V-1000V/600V	Output Voltage:	230V/400V(310V-476V) 3W+N+PE
Output Current:	15.2A	Output Frequency:	50Hz/60Hz
Product Name:	Growatt 10KW Hybrid Solar Inverter	Application:	Solar Power System Home
Inverter Type:	Three Phase Growatt 10kW Hybrid Inverter	Battery Type:	Lithium Ion Battery
Feature:	USER-FRIENDLY/FLEXIBLE/SAFE&RELIABLE	Protection Degree:	IP65
Warranty:	10 Years	Weight:	28kg
Highlight:	Three Phase Lithium Battery Inverter

Product Description:

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase

Products Description:

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase 0

Datasheet	SPH4000 TL3 BH	SPH5000 TL3 BH	SPH6000 TL3 BH	SPH7000 TL3 BH	SPH80000 TL3 BH	SPH100000TL3 BH
Input data(PV)
Max. recommended PV power (for module STC)	5200W	6500W	7800W	9100W	10400W	13000W
Max. DC Voltage	1000V
Start Voltage	160V
MPP Voltage Range	160V-1000V/600V
No. of MPP trackers	2
No. of PV String per MPP tracker	1
Max. Input Current per MPP tracker	12A
Max. Short-circuit Current per MPP tracker	15A
Output data(AC)
AC Nominal Power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent Power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC Voltage	230V/400V (310~476V)
AC Grid Frequency	50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max. Output Current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable Power Factor	0.8leading…0.8lagging
THDi	<3%
AC Grid Connection Type	3W+N+PE
Battery data (DC)
Battery voltage range	100~550V
Max charging and discharging current	25A
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Type of battery	Lithium battery

Hybrid Storage Solar System Chart

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase 1

Product Packaging

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase 2

Application

Growatt SPH10000TL3 BH High Voltage Lithium Battery Inverter for Residential Storage Systems Three Phase 3
